- Zero emissions
- Energy-efficient
- Precise control
- Low maintenance

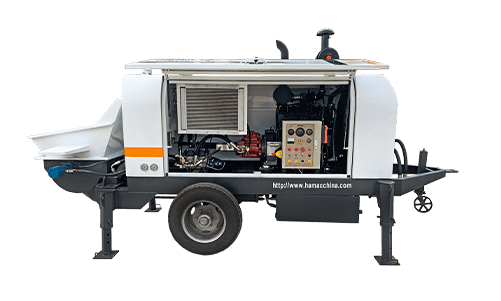

Our Electric Concrete Pump redefines efficient, sustainable concrete placement for urban, indoor, and eco-sensitive construction projects. Powered by a high-efficiency electric motor (compatible with 380V/480V industrial power), it delivers zero exhaust emissions—perfect for city centers or enclosed sites where diesel fumes are restricted.
Pressure:
10-16Mpa
Capacity:
30-80m³/H
Main Power:
37-110KW

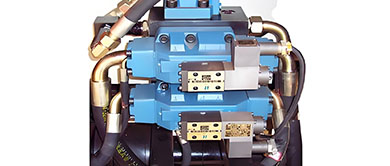

Low-noise axial piston pump with precise flow control. Matches concrete viscosity to avoid waste, ensures uniform placement. Wear-resistant parts extend service life, reducing maintenance needs.
High-efficiency electric motor delivers stable power for 30-80 m³/h pumping. Zero exhaust, low 65dB noise—ideal for urban/indoor sites. Saves 30-40% energy vs diesel, cutting operational costs.
Auto fault diagnosis (overload, low power) and one-click ops. 12V backup ensures stability, works in damp job site conditions.
Compact aluminum radiator with silent fans. Efficiently cools hydraulic oil to 40-60℃, no overheating in 40℃+ environments. Anti-clog design needs less cleaning, supporting non-stop work.
Auto centralized lubrication. Adjustable grease volume prevents under/over-lubrication. Sensor alerts for low grease, cuts part wear by 25%, extends maintenance cycles.

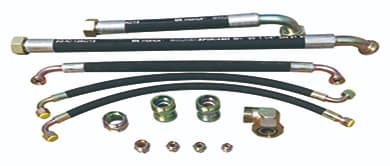

35 MPa stainless steel quick-connects with NBR+PTFE seals. Leak-proof, corrosion-resistant, fits SAE/DIN standards. Easy on-site replacement, minimizes downtime from hose issues.
With a stable pumping capacity of 20-60 m³/h and precise electronic flow control, it ensures uniform concrete distribution for foundations, columns, and slabs, reducing material waste by up to 15%. Unlike diesel models, it operates at just 65 dB—minimizing noise pollution, ideal for residential areas or daytime urban builds.
| Item | Unit | S Valve Concrete Pump | |||||||
| HBT30 | HBT40 | HBT50 | HBT60 | HBT80 | |||||
| Theoretic Concrete Delivery Volume | Low Pressure | M3/H | 30 | 40 | 50 | 60 | 80 | ||
| High Pressure | M3/H | / | / | 23 | 36 | 48 | |||
| Concrete Delivery Pressure | Low Pressure | MPa | / | / | 5.8 | 6.3 | 8.3 | ||
| High Pressure | MPa | 10 | 10 | 12 | 13 | 16 | |||
| Hydraulic Pressure | MPa | 25 | 28 | 28 | 28 | 28 | |||
| Electric Motor Speed | R/Min | 1480 | |||||||
| Main Hydraulic Pump | JINDA | Kawasaki | |||||||
| Main Cylinder Dia./Pole Dia. x Stroke | Mm | Φ 80/55 x 845 | Φ 100/70 x 1100 | Φ 110/70 x 1300 | Φ 120/80 x 1650 | Φ 140/90 x 1800 | |||
| Diameter Of Delivery Cylinder | Mm | 140 | 160/180 | 180 | 200 | 200 | |||
| Electric Motor Power | KW | 37 | 45 | 55 | 90 | 110 | |||
| Capacity Of Hydraulic Oil Tank | L | 200 | 370 | 370 | 560 | 560 | |||
| Hopper Capacity | M3 | 0.4 | 0.55 | 0.6 | |||||
| Overall Weight | Kg | 2300 | 3500 | 3600 | 5000 | 5600 | |||
| Max. Delivery Distance | Vertical | M | 100 | 160 | 160 | 160 | 160 | ||
| Horizontal | M | 300 | 500 | 500 | 800 | 1000 | |||
