Efficient pumping
Uniform mix quality
Durable & reliable
All-Terrain Mobility
Crawler Concrete Mixer with Pump Truck-01

Crawler Concrete Mixer with Pump Truck

Our Crawler Concrete Mixer with Pump Truck redefines efficiency with a self-propelled crawler chassis, delivering powerful mixing and pumping in one rugged machine. Ideal for rough, remote, or uneven construction sites, its heavy-duty tracks navigate mud, gravel, and debris effortlessly—no need for additional transport.

Pressure:

Capacity:
50m³/H

Main Power:
91KW

Crawler Concrete Mixer with Pump Truck-01

Technical Features

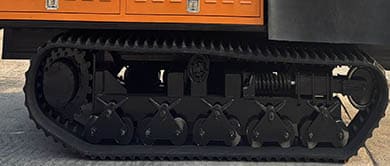

Characteristics of Crawler Concrete Mixer with Pump Truck-01
Strong Rough Terrain Adaptability

Its crawler design tackles uneven, muddy, or hilly sites easily. Unlike wheeled models, it avoids getting stuck, ensuring access to remote construction areas.

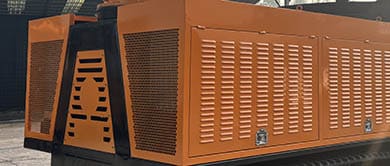

Characteristics of Crawler Concrete Mixer with Pump Truck-02
​​Integrated Mixing & Pumping

Integrates concrete mixing and pumping functions. Eliminates the need for separate equipment, simplifying workflow and saving job site space.

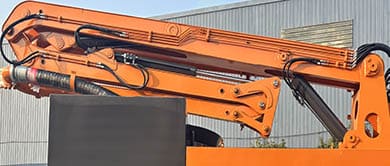

Characteristics of Crawler Concrete Mixer with Pump Truck-03
Efficient Concrete Delivery

Mixes uniform concrete and pumps it directly to target spots. Cuts manual labor and shortens project timelines, ideal for tight-deadline tasks.

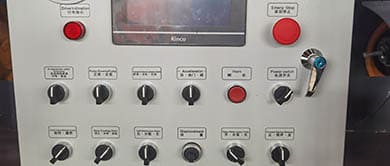

Characteristics of Crawler Concrete Mixer with Pump Truck-04
Stable Operation

Crawler chassis provides strong ground grip. Prevents wobbling during mixing or pumping, ensuring consistent concrete quality even on sloped surfaces.

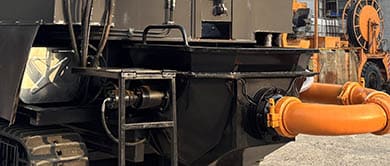

Characteristics of Crawler Concrete Mixer with Pump Truck-05
Compact & Maneuverable

Despite dual functions, it has a space-saving design. Moves flexibly in narrow job sites (e.g., residential lanes) where large equipment struggles.

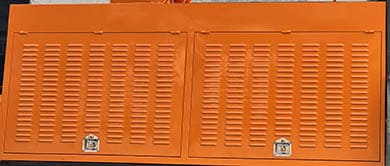

Characteristics of Crawler Concrete Mixer with Pump Truck-06
Durable Build

Uses heavy-duty materials for crawlers and components. Withstands harsh construction conditions, reducing maintenance needs and extending service life.

Product Display

Ideal for diverse construction needs, the Crawler Concrete Mixer with Pump Truck excels in residential builds, road repairs, and rural construction alike. Its user-friendly controls and rugged, high-quality components ensure consistent, stable performance even in harsh environments, helping reduce overall maintenance costs.

→ Please contact us if you are interested

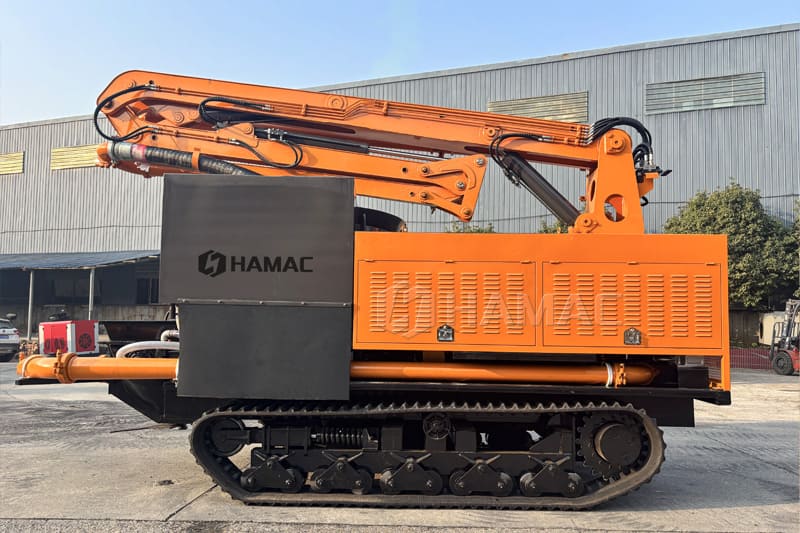

  • Introduction to Crawler Concrete Mixer with Pump Truck-01

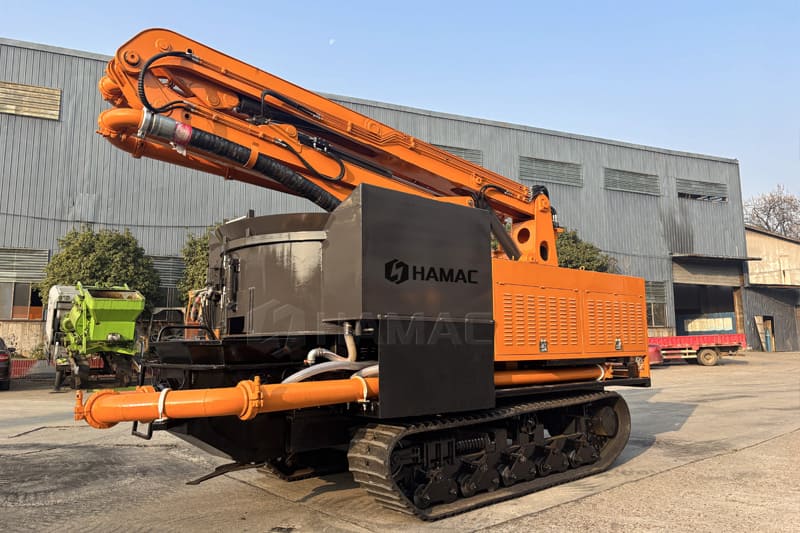

  • Introduction to Crawler Concrete Mixer with Pump Truck-02

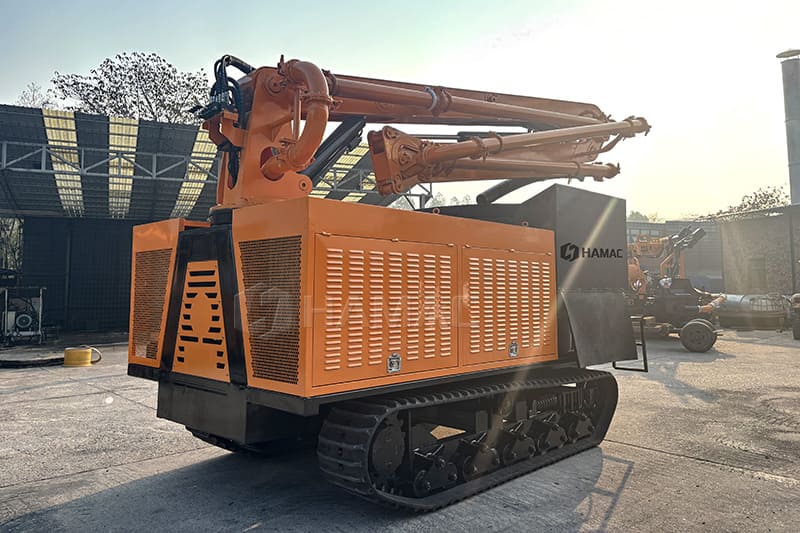

  • Introduction to Crawler Concrete Mixer with Pump Truck-03

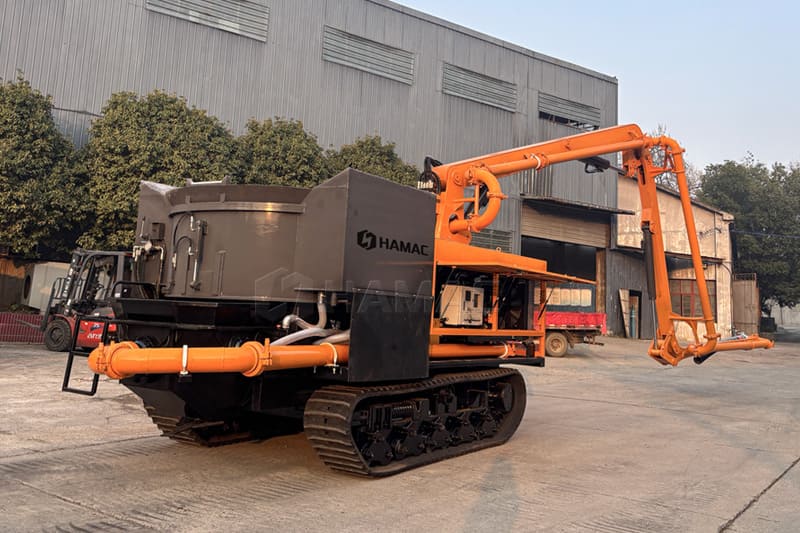

  • Introduction to Crawler Concrete Mixer with Pump Truck-04

Technical Parameters

Whole Machine Parameters and Technical Indicators Unit Parameters
Whole Vehicle Dimensions (Length * Width * height) mm 5600*2280*3200
Self-weight t 12
Total Weight t 18
Engine Power kw 91
Emission Standard National II
Theoretical Maximum Pumping volume m³/h 50
Travel Mode Track Travel
Maximum Traveling Speed km/h 5
Maximum Stirring Volume Per Time 2
Maximum Fabric Height of Boom m 15
Horizontal Fabric Length of Boom m 11.8
Walking System
Chassis Type All Terrain Rubber Tracks /Wheel Chassis
Drive Mode Hydraulic Drive
Walking Motor Model TM18
Track Material Rubber Track
Track Specification mm 450*90*82
